R2R gets the TOPPING treatment

The TOPPING Centaurus uses R2R architecture, a design beloved by audiophiles for its natural, analog-like sound. Unlike delta-sigma DACs, which use processing to convert digital signals, R2R DACs use a simpler, more direct method of signal conversion that results in a warmer, more natural sound signature. It's great for music that thrives on subtlety, bringing out the kind of depth and texture that other methods can't quite match. With its fully-balanced 8-channel design, the Centaurus takes these strengths further, offering improved precision and dynamic range.

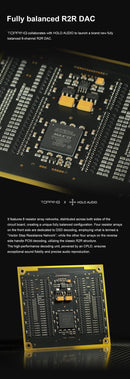

Fully-balanced R2R architecture

The Centaurus is built around a fully balanced 8-channel R2R DAC architecture, created in partnership with HOLO Audio. This design uses eight resistor networks to process audio with incredible precision and dynamic range. Each network plays a role: the front side is optimized for DSD decoding with a technology called the "Vector Step Resistance Network," while the reverse side handles PCM decoding using a traditional R2R setup. A CPLD (Complex Programmable Logic Device) coordinates the entire process, ensuring every detail is decoded with jaw-dropping accuracy.

3 sampling modes: NOS, OS, or Best

Centaurus offers three sampling modes:

• OS Mode applies oversampling to reduce noise and enhance clarity.

• NOS Mode bypasses oversampling.

• Best Mode automatically selects the optimal settings.

Aurora UI: functional and beautiful

Navigating the Centaurus is a breeze thanks to the Aurora UI. The 2-inch full-color screen offers intuitive touch controls and customizable backgrounds, from FFT visualizations to playback info.

Dial it in: 10-band high-precision PEQ

Fine-tune your sound with the Centaurus' 10-band parametric equalizer. Adjust frequencies, gain, and bandwidth with precision—or import custom curves for your favorite profiles. With multiple user profiles, your favorite settings are always at your fingertips. Just note that PEQ supports PCM 192kHz/32bit signals and excludes IIS inputs.

Wireless done right: LDAC and Bluetooth 5.1

For those who love high-quality wireless audio, the Centaurus has you covered. Bluetooth 5.1 support, powered by a QCC5125 chip, is compatible with LDAC, aptX Adaptive, aptX HD, AAC, and SBC formats.

Plug and play

The Centaurus works seamlessly with Windows, macOS, Linux, iOS, and Android devices. Its XMOS XU316 chipset and Thesycon driver deliver stable USB performance for PCM up to 768kHz/32bit and DSD512. For Windows ASIO applications, you’ll need the Thesycon driver—but everything else is plug-and-play.

Minimal jitter, maximal clarity

CPLD-optimized clock signals ensure ultra-low jitter, with performance measured at an impressive -150dB. That means a cleaner signal path and crystal-clear sound for your music.

Realistic reproduction

With a THD+N of less than 0.0005% and a 130dB dynamic range, the Centaurus reproduces your music in vivid detail.

Take control of your output

Whether you prefer RCA single-ended or XLR balanced outputs, the Centaurus offers flexibility. You can switch between XLR 4V/RCA 2V for standard listening or XLR 5V/RCA 2.5V for even better performance.

IIS input: high-spec versatility

The IIS input interface supports PCM 768kHz/32bit and DSD512 native, making it compatible with most digital systems. Perfect for advanced setups, it supports multiple IIS modes to ensure a seamless connection.

Direct connection to active speakers

Use the Centaurus’ preamp mode to adjust output volume and connect directly to active speakers or amplifiers. This eliminates the need for a separate preamp, simplifying your system without sacrificing control.

Product highlights

• Fully-balanced 8-channel R2R architecture

• Three sampling modes: NOS, OS, Best

• Aurora UI with customizable features

• 10-band high-precision PEQ adjustment

• Bluetooth 5.1 with LDAC and aptX support

• Wide compatibility across platforms

• THD+N < 0.0005%, SNR 130dB

• IIS input for ultra-high-spec signals

• RCA and XLR outputs with adjustable voltage levels

• Preamp mode for active speaker connections

• 12V Trigger for synchronized power control

Specs

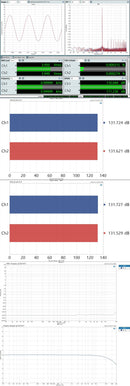

Centaurus DAC parameters (LineOut/USB In@96kHz):

• RCA:

• THD+N @A-wt: <0.0005% @1kHz

• THD @No-wt 90kBw: <0.0005% @20-20kHz

• SNR @A-wt: 126dB @1kHz

• Dynamic Range @A-wt: 126dB @1kHz

• Frequency Response:

• 20Hz-20kHz (+0.6dB)

• 20Hz-40kHz (+2.2dB)

• Output Level:

• 2.1Vrms @0dBFS (4V Mode)

• 2.6Vrms @0dBFS (5V Mode)

• Noise @A-wt: <1.2uVrms

• Channel Crosstalk: -121dB @1kHz

• Channel Balance: 0.3dB

• Output Impedance: 50Ω

• XLR:

• THD+N @A-wt: <0.0005% @1kHz

• THD @No-wt 90kBw: <0.0005% @20-20kHz

• SNR @A-wt: 130dB @1kHz

• Dynamic Range @A-wt: 130dB @1kHz

• Frequency Response:

• 20Hz-20kHz (+0.6dB)

• 20Hz-40kHz (+2.2dB)

• Output Level:

• 4.2Vrms @0dBFS (4V Mode)

• 5.2Vrms @0dBFS (5V Mode)

• Noise @A-wt: <1.4uVrms

• Channel Crosstalk: -130dB @1kHz

• Channel Balance: 0.3dB

• Output Impedance: 100Ω

What's included

• TOPPING Centaurus DAC

• Remote control

• USB cable

• AC cable

• Bluetooth antenna

• Product Information Card

Featured reviews

 "This has to be heard to be believed. It's a wonderfully-sounding DAC. I love the build quality, the inputs and outputs, the built-in power supply, the Aurora interface. I wish it had an e-ARC output and more visible buttons, but other than that I love it." -The Boomer Consumer

 "I whole-heartedly recommend this." -SoundNews

 "The new DAC to beat under $1,000." TylersElectric

 "The best DAC for $1000. It sounds so good. I can't say enough good things. It's one of the best DACs I've ever heard, and at $1000 nothing touches it." -Old Guy HIFI
